.test benches
With power and speed to safety.
The testing and test data acquisition of modern components and parts is becoming more and more important. For this purpose, we manufacture a large number of test benches both for laboratory applications (research & development) and for series testing. It is also possible to integrate a fully automatic test rig into an existing system for in-line testing.

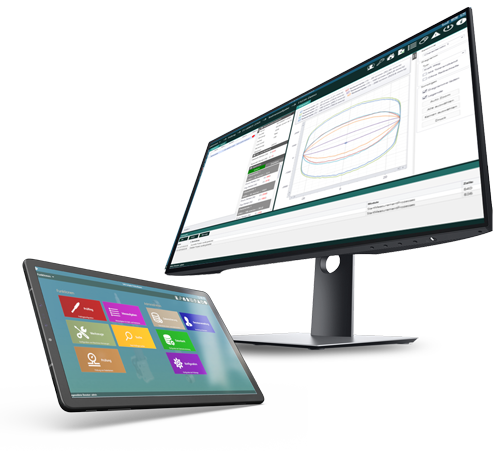

It is important to us to provide you with a complete and user-friendly system. Therefore our test benches always come with a software programmed by us, which ensures an optimal evaluation of your measurements. Of course, we can adapt our test benches and software to your specific requirements.
Even after the initial setup by our staff, we remain your service partner and provide maintenance and preventive maintenance at home and abroad.

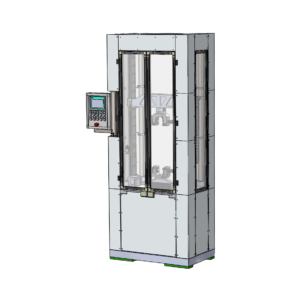

Dynamic force-path test stands with electromagnetic direct drive
Test benches for highly dynamic determination, recording and testing of characteristics and properties of, for example, shock absorbers, suspension struts or rubber bearings.
- Sinusoidal or free-form travel profile with up to 160 mm free travel
- Two superimposed frequencies possible
- Nominal drive forces of 9 kN, 12.5 kN and 25 kN at up to 2.5 m/s and 30 Hz
- Automatic adjustment of the clamping lengths of the test specimens
- Suitable for laboratory, in-line, end-of-line and endurance tests
Test benches for dynamic determination, recording and testing of characteristics and properties of, for example, shock absorbers, suspension struts or rubber bearings.
- Sinusoidal travel profile with pinnable strokes of 5, 10 ,25, 50 ,75 and 100 mm travel
- Nominal drive forces of 20 kN and 40 kN at up to 2.5 m/s and 6.6 Hz
- Automatic adjustment of the clamping lengths of the test specimens
- Suitable for laboratory, in-line, end-of-line and endurance tests

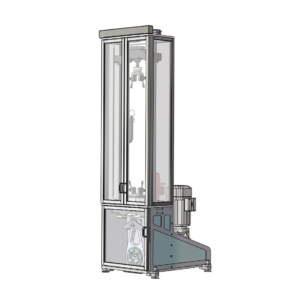

Dynamic force-path test stands with mechanical crank drive

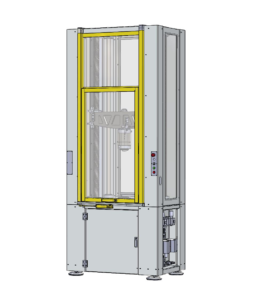

Quasistatic force-path test benches
Test benches for static determination, recording and testing of characteristics and properties of, for example, springs, suspension struts or air springs.
- Powerful travel speeds from 100 mm/s up to 0.1 mm/s
- Nominal driving forces of 25 kN, 50 kN and 100 kN
- Automatic adjustment of the clamping lengths of the test specimens
- Standard control and filling of air spring elements possible

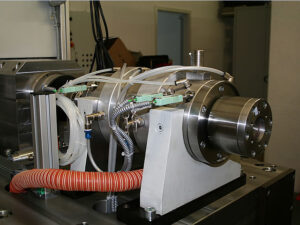

Centrifugal test rigs for testing fast rotating structures such as clutch or brake disks for destruction.
- Speeds up to 20.000 1/min
- Temperature-controlled test chamber
- Suction for particles produced e.g. by clutch linings
Centrifugal test benches
Add-ons
We offer you extensive add-ons for our test benches. These include
- Adaptations for mounting the test specimens
- Interfaces for the evaluation of parameters such as temperature
- Active control of the component to be tested e.g. valve unit
